Maksiwa Edgebander CBC.TPM - Pre-Milling

Maksiwa Edgebander CBC.TPM - Pre-Milling

Maksiwa| Authorized Dealer | SKU CBC.TPM
In Stock, Ready to ship
$21,900.00

Free Shipping on All Maksiwa Products (No Sales Tax)!

Why Choose Maksiwa

Authorized Maksiwa Dealer

Best Prices Online – Price Match Guarantee

No Sales Tax for Most U.S. States

Chat with an Expert: (786) 808-0772

Quantity
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Description

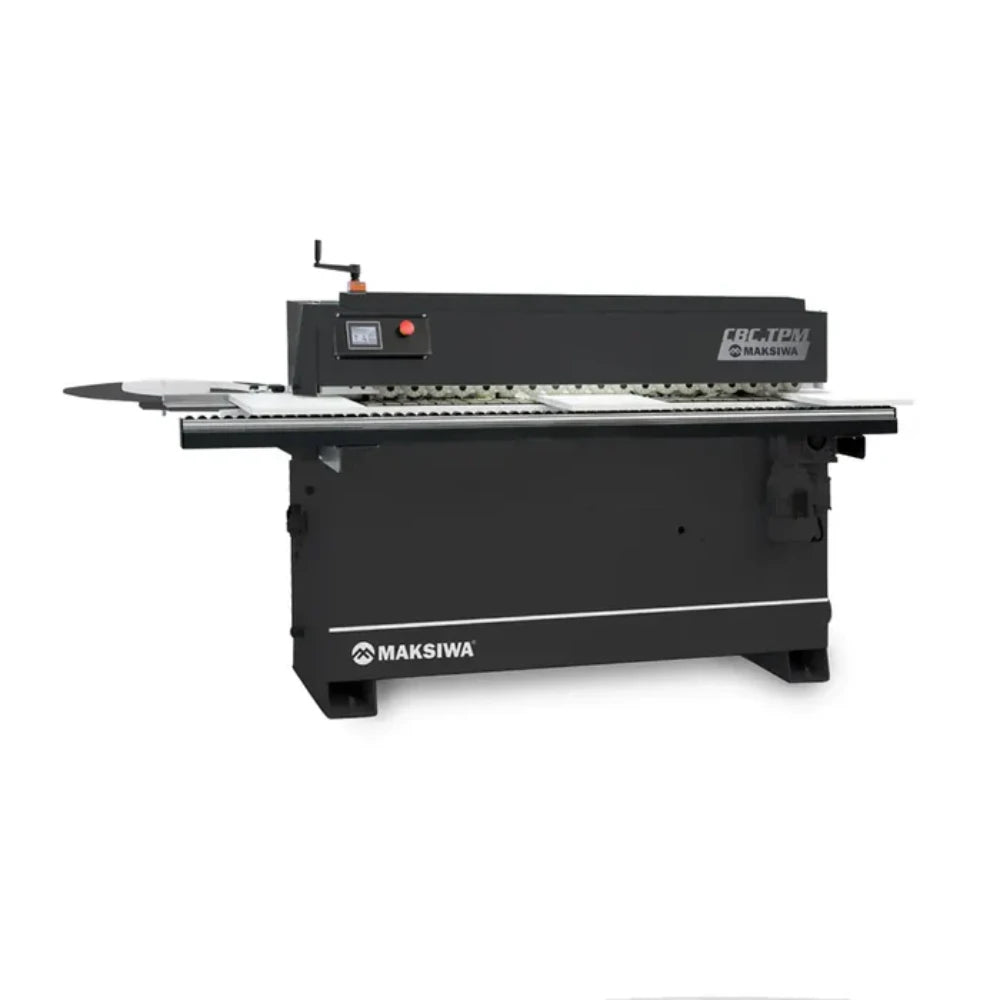

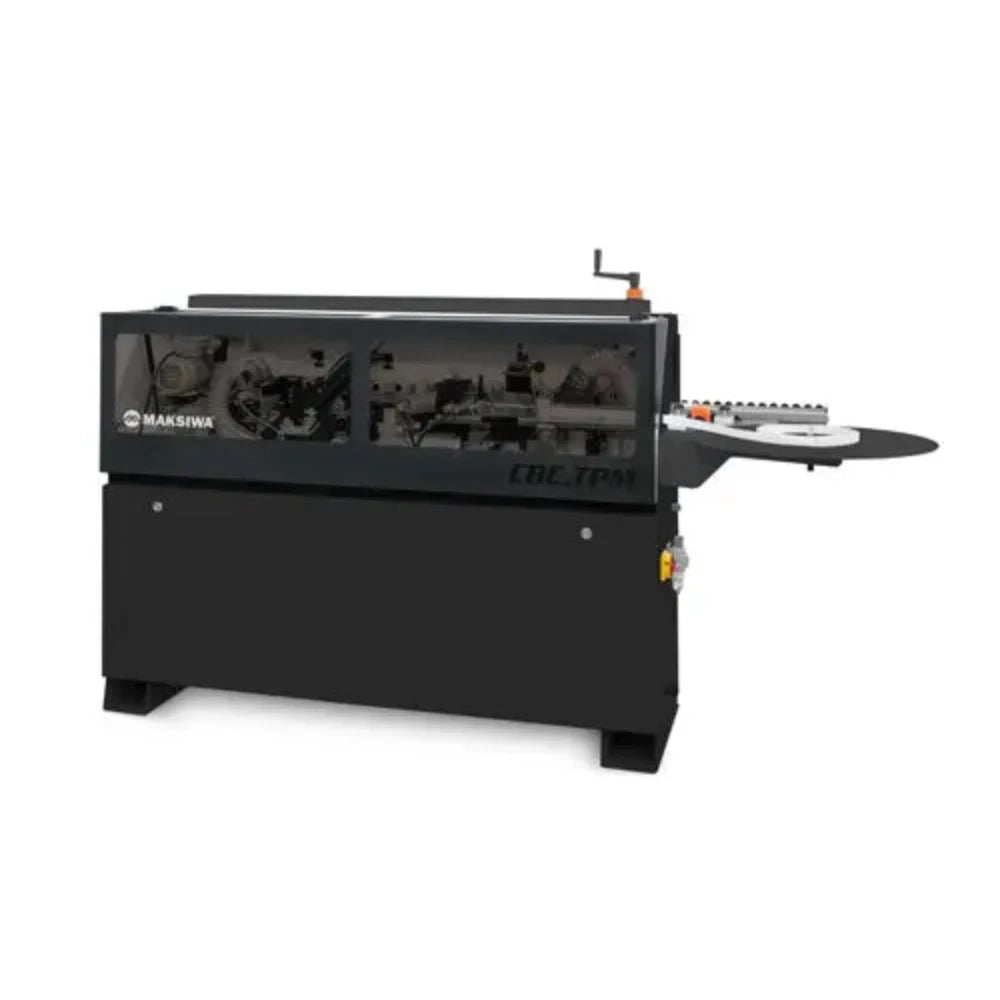

The NEW Maksiwa CBC.TPM Automatic Edgebander combines precision, efficiency, and a compact footprint, making it the perfect solution for workshops with limited space that still demand professional results.

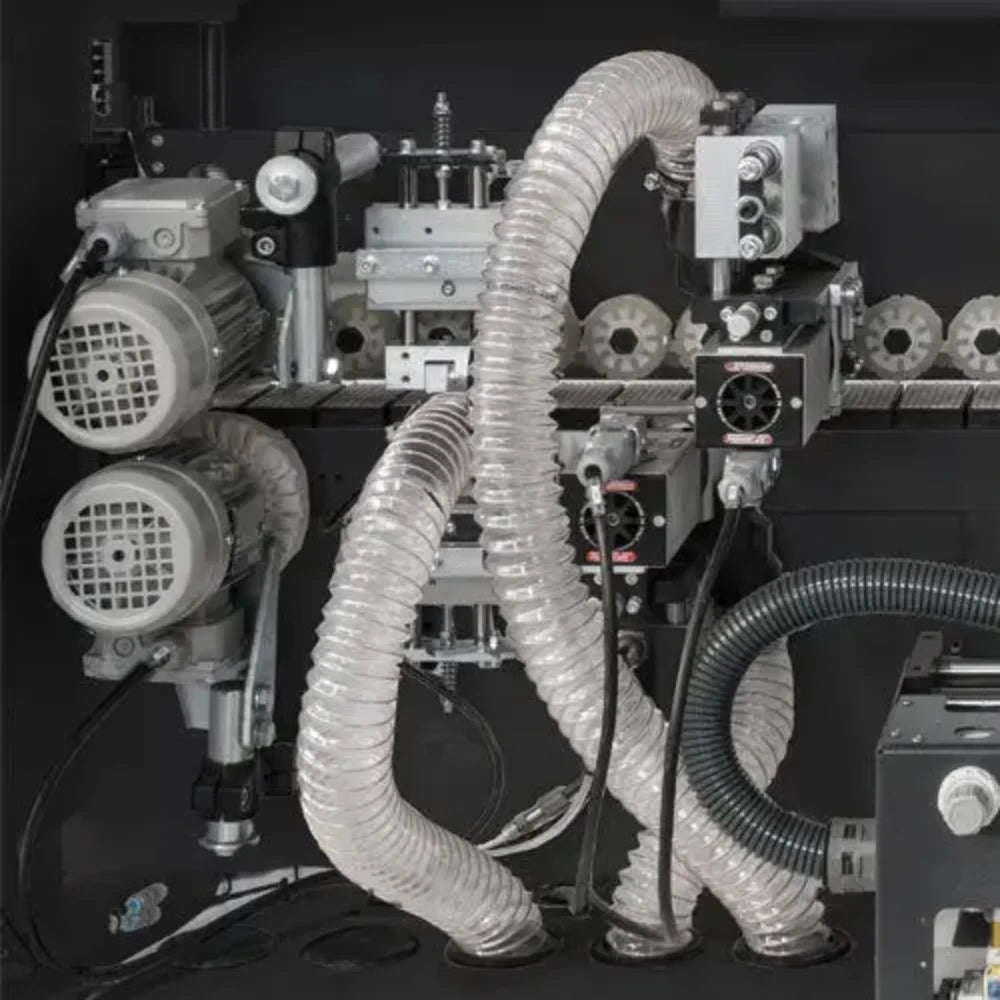

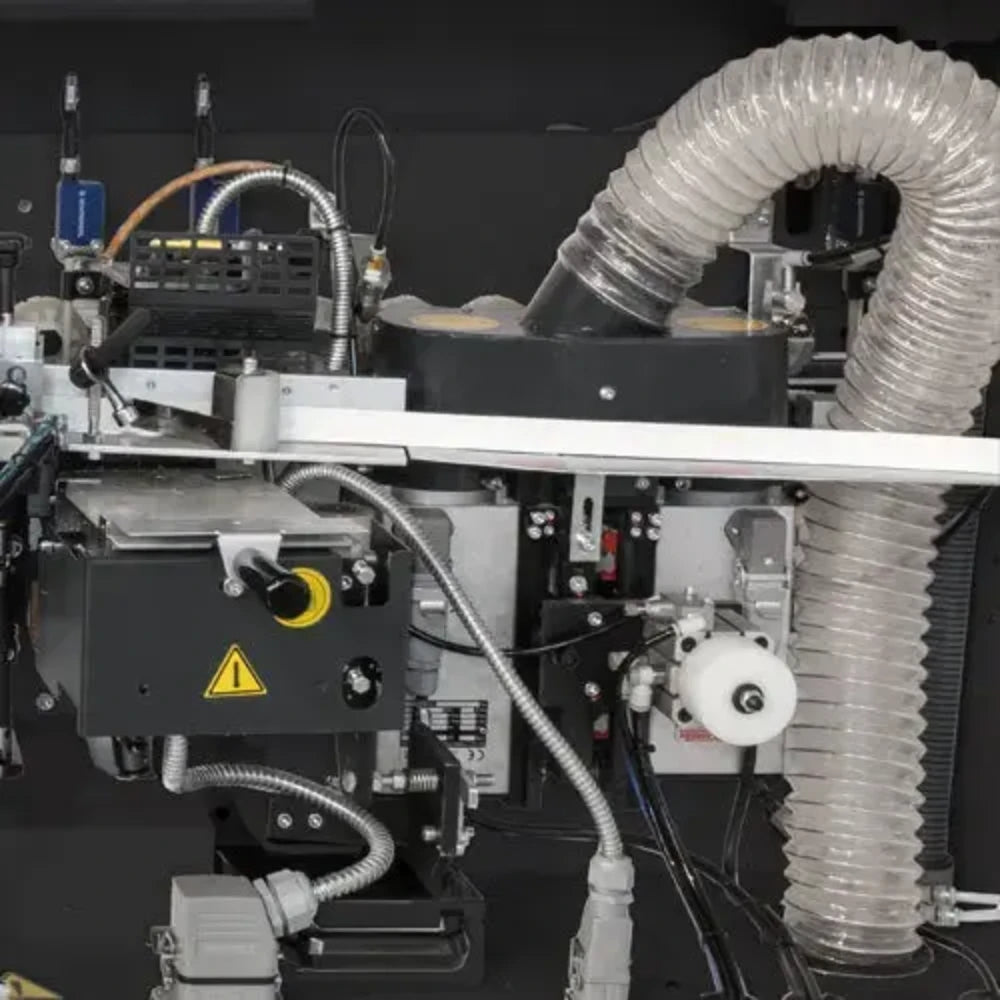

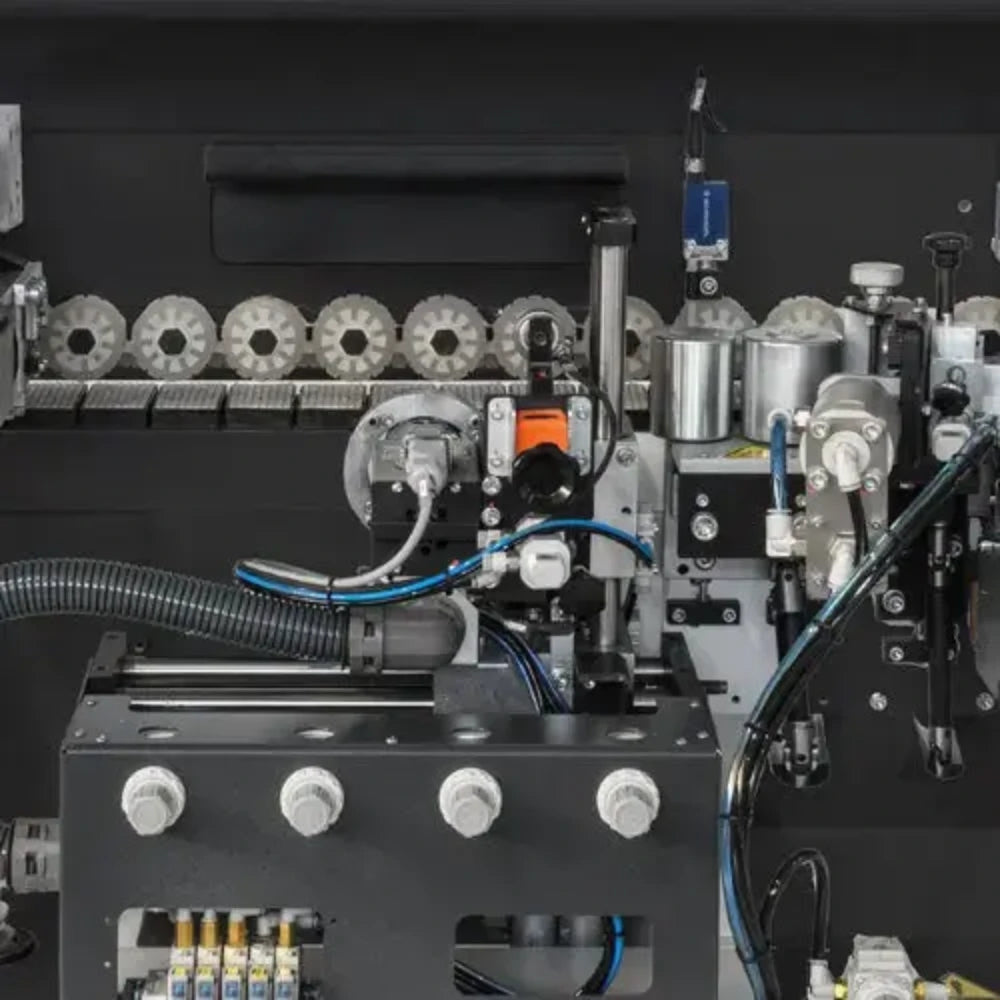

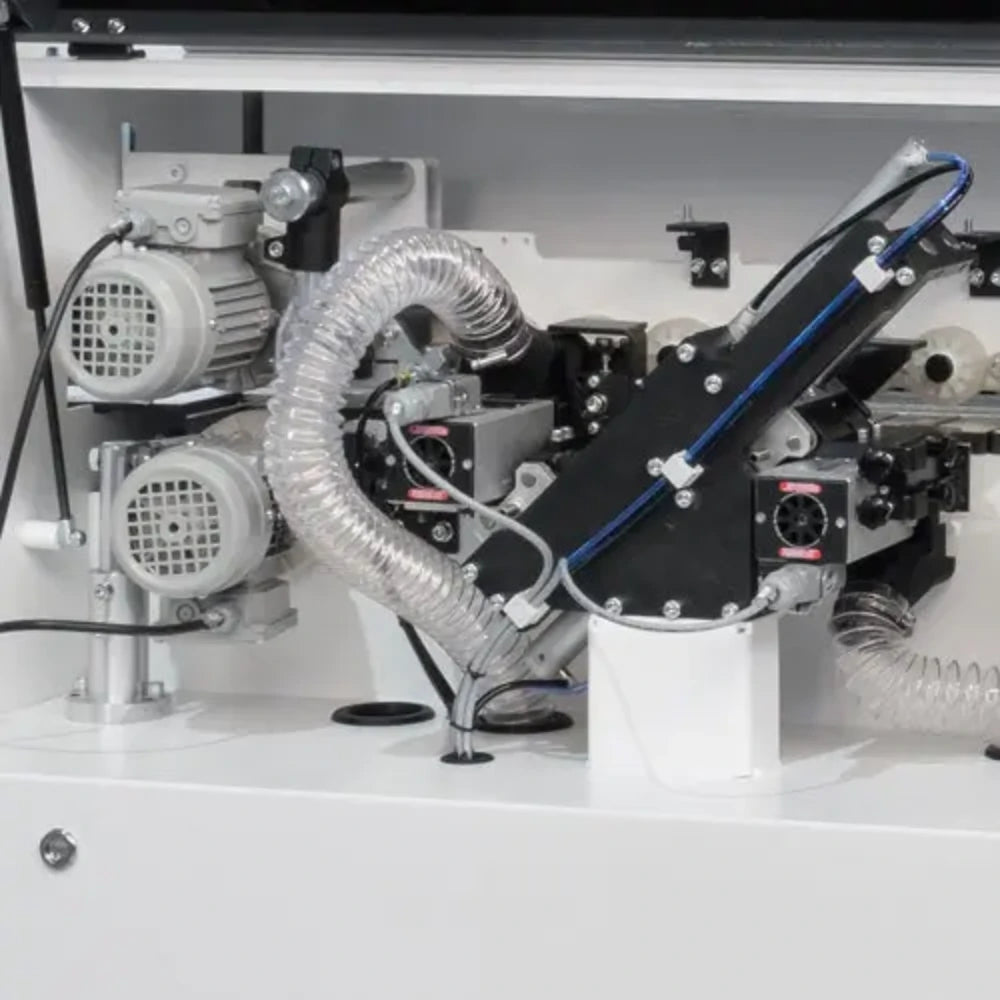

Despite its compact design, the CBC.TPM delivers a complete edge banding process, featuring pre-milling, a gluing unit, and a multi-function finishing group that performs end trimming, top and bottom trimming, glue scraping, buffing, and vertical rounding. This all-in-one configuration ensures clean adhesion and flawless finishing across a wide range of applications.

Equipped with an intuitive touchscreen control panel, the CBC.TPM offers ease of operation, quick setup, and consistent output. It supports common edge banding materials such as Melamine, PVC, ABS, and PP, making it a versatile and efficient choice for professional woodworking shops.

Key Features

  • Compact design with integrated pre-milling unit

  • Multi-function finishing group for complete edge processing

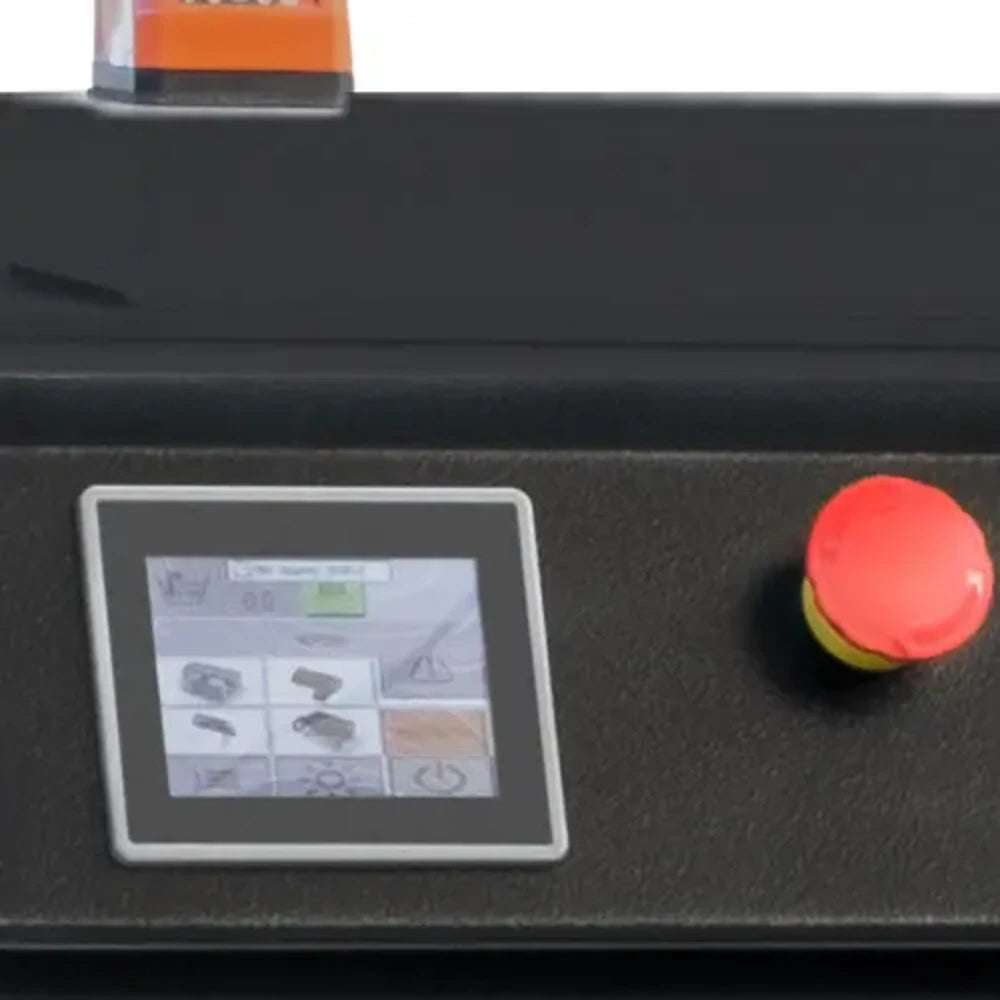

  • Touchscreen control panel for intuitive operation

  • Automatic feeding system for consistent productivity

  • Glue scraper and buffing units for superior finish

  • Compatible with Melamine, PVC, ABS, and PP edge tape

Additional Technical Information

  • Edge Tape Thickness: 0.4 – 2 mm

  • Panel Thickness Range: 10 – 45 mm

  • Power Supply: 1 Phase – 220 V – 60 Hz

  • Glue Pot Capacity: 0.5 kg | 1 lb (Teflon coated)

  • Automatic Feeding Speed: 21 ft/min (6.5 m/min)

  • Net Weight: 1,191 lbs | 540 kg

  • Sound Rating: 80 dB

Technical Specifications (SAE & Metric)

  • Automatic Feeding Speed: 21 ft/min | 6.5 m/min

  • Panel Thickness (Min / Max): 13/32” – 1 3/4” | 10 – 45 mm

  • Maximum Pre-Milling Height: 1” | 30 mm

  • Edgebanding Thickness: 0.0157” – 0.07” | 0.4 – 2 mm

  • Glue Pot Capacity: 1 lb | 0.5 kg

  • Maximum Edgebanding Height: 1” | 30 mm

  • Minimum Panel Width: 1 3/4” | 45 mm

  • Minimum Panel Length: 4 3/4” | 120 mm

  • Extendable Panel Support Rail Length: 83 1/2” | 2122 mm

  • Extension Table Max Width: 10” | 257 mm

  • Dust Collector Port Size: 6” | 150 mm

  • Minimum Dust Collection Requirement: 1236 CFM | 2100 mÂł/h

  • Air Pressure Requirement: 14 SCFM @ 87 PSI | 0.7 MPa

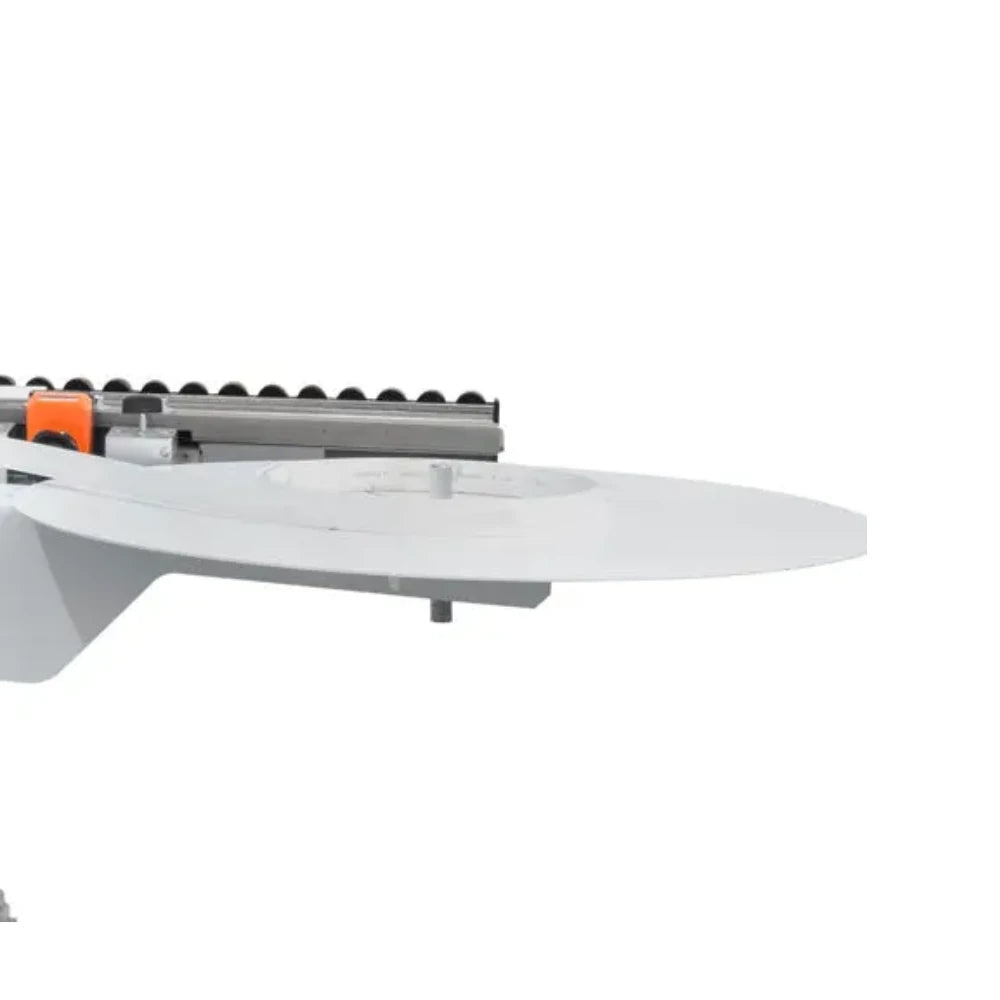

  • Edgebanding Coil Support Diameter: 59” | 1498 mm

  • Recommended Glue Temperature: 356°F – 410°F | 180°C – 210°C

  • Glue Type: Granulated Hot-Melt EVA

  • Maximum Machine Dimensions (L x W x H):

    • 93 1/2” x 40 13/16” x 53” | 2376 x 1028 x 1347 mm

  • Shipping Dimensions (L x W x H):

    • 91” x 30” x 57” | 2320 x 760 x 1448 mm

Motor & Electrical Specifications

  • Electrical Requirement: 1 Phase – 220 V – 30 A – 60 Hz

  • Conveyor Motor: 60 Hz – 1390 RPM – 0.66 kW

  • Top & Bottom Trimmer HF Motor: 200 Hz – 12,000 RPM – 0.27 kW

  • End Trimmer Motor: 200 Hz – 12,000 RPM – 0.27 kW

  • Front & Rear Pre-Milling HF Motors:

    • 150 Hz – 9000 RPM – 0.75 / 0.25 kW

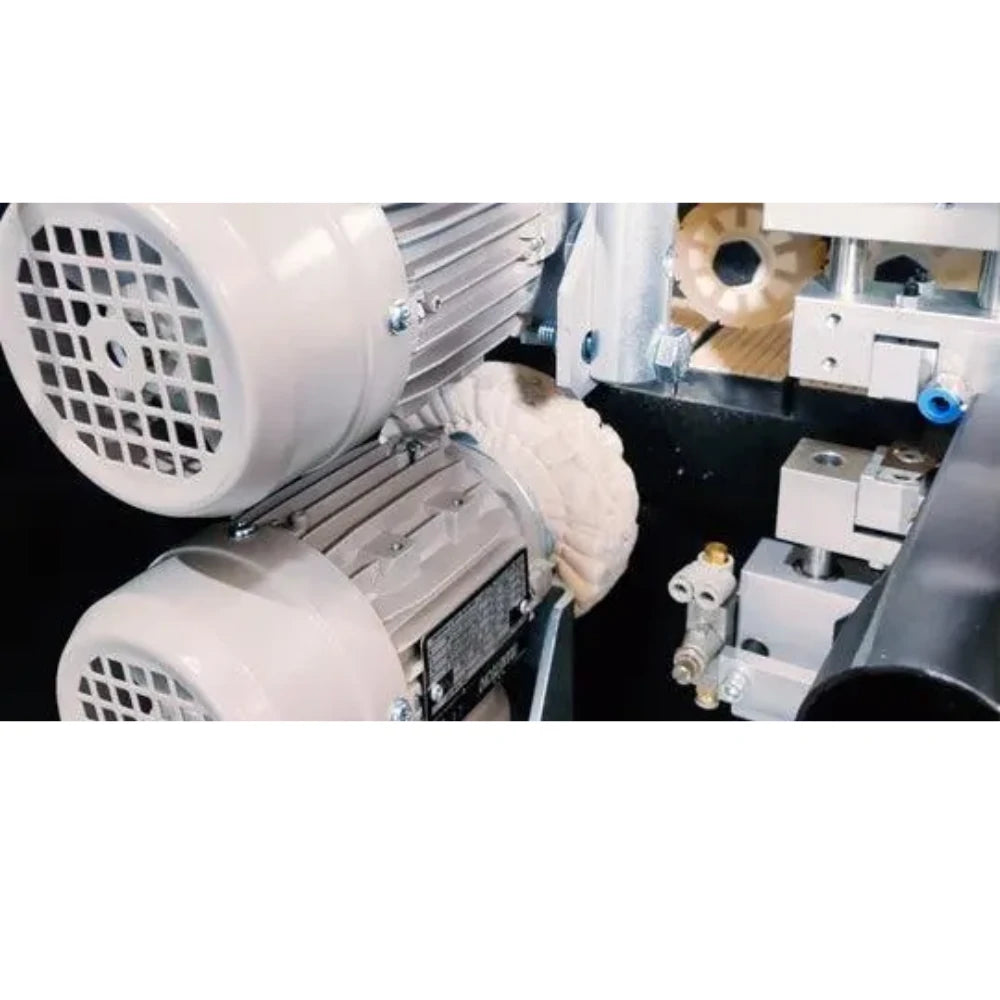

  • Top Buffing Motor: 60 Hz – 1680 RPM – 0.11 kW

  • Bottom Buffing Motor: 60 Hz – 1680 RPM – 0.11 kW

  • Sound Rating: 80 dB
