Description

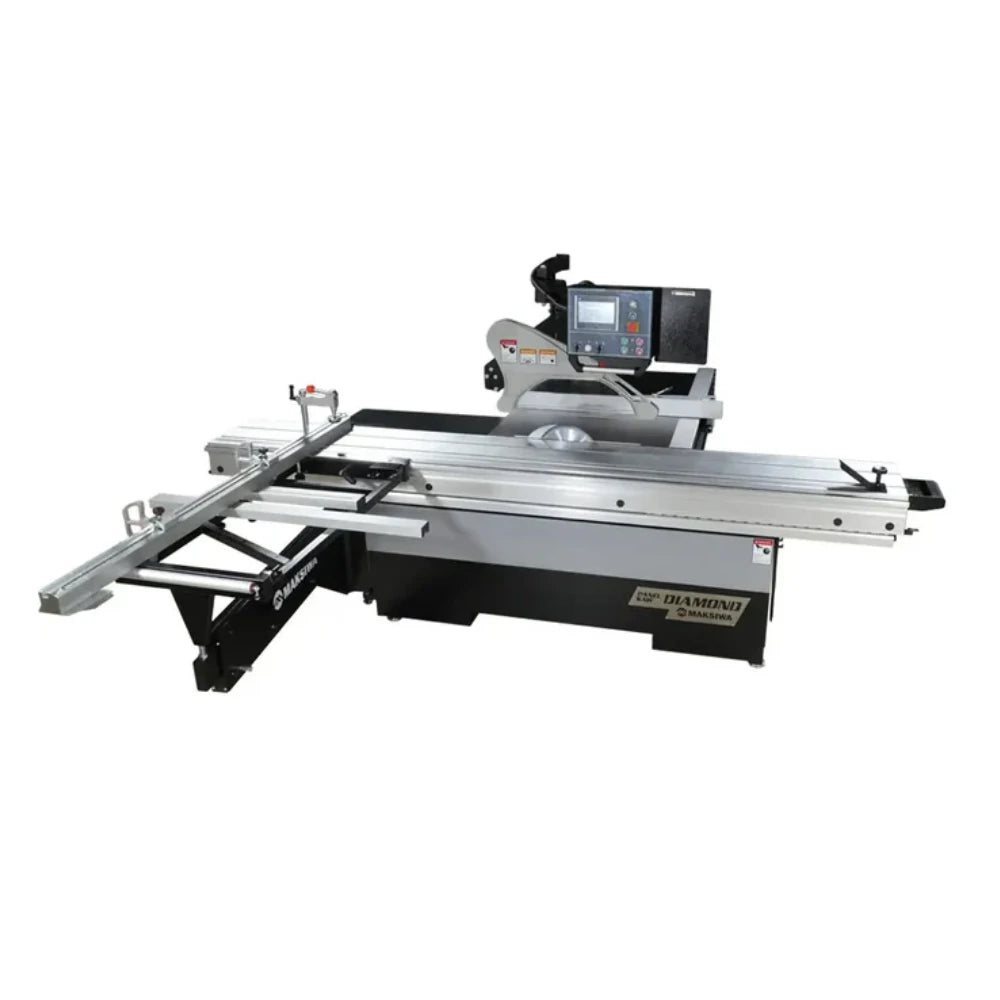

The Maksiwa BMD.3200.IR is a high-performance sliding panel saw engineered for woodworking professionals who demand maximum precision, productivity, and control. Powered by a robust 10 HP main motor (3-phase, 220V), this machine is built to handle heavy-duty cutting operations in modern production environments.
One of its standout features is the programmable CNC-controlled rip fence, operated through an intuitive touchscreen interface, allowing fast, accurate positioning and repeatability for high-volume workflows. Whether processing full-size panels or executing fine, detailed cuts, the BMD.3200.IR delivers consistent, professional-grade results.
Constructed with a rigid industrial-grade frame, the saw provides exceptional stability and long-term reliability. Integrated dual blade protection, efficient dust collection ports, and user-friendly controls contribute to a cleaner, safer, and more efficient workspace. Backed by a two-year warranty and responsive US-based customer support, the BMD.3200.IR offers complete confidence for demanding professionals.
Ideal for cabinetmakers, furniture manufacturers, and custom woodworking shops, this sliding panel saw is designed to meet and exceed the expectations of high-production operations.
Key Features
-
Powerful 10 HP main motor for industrial applications
-

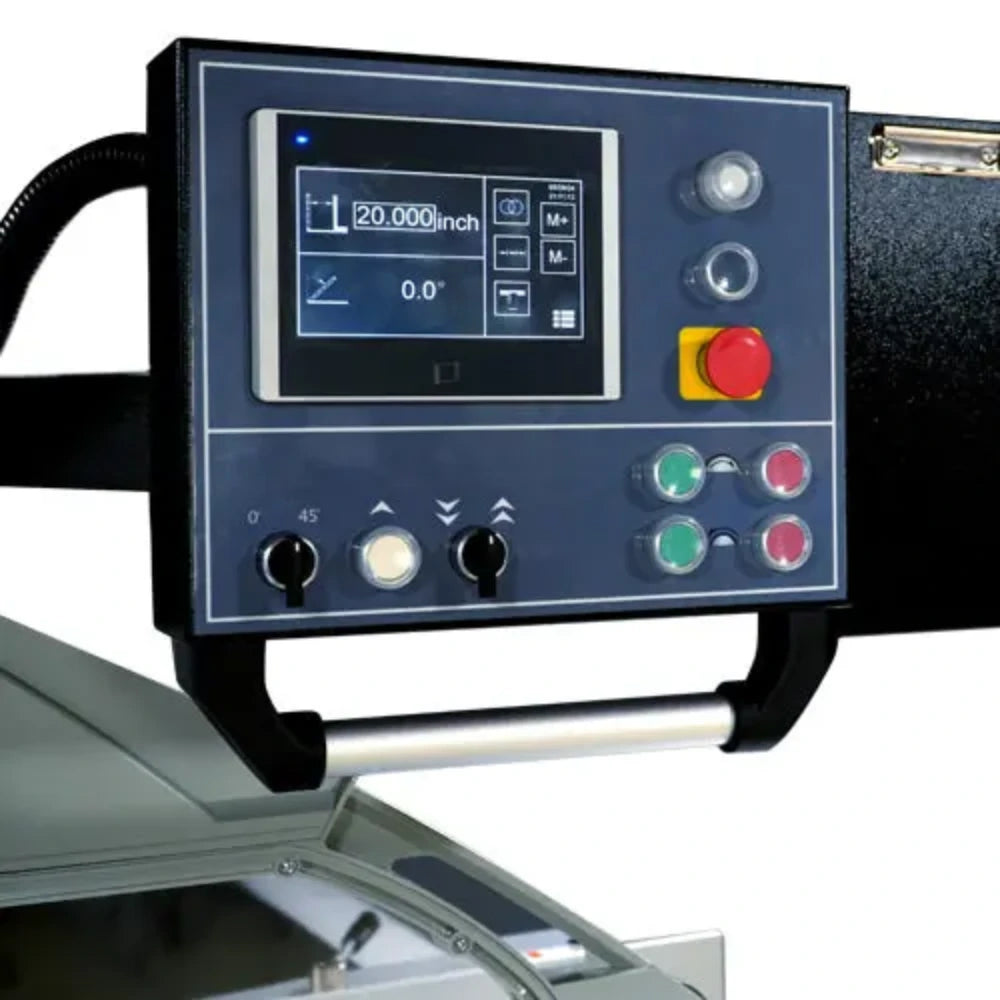

Programmable CNC rip fence with touchscreen control
-
Large 126â anodized aluminum sliding table
-
Heavy-duty cast iron and extension tables
-
Multi-speed main blade for material versatility
-

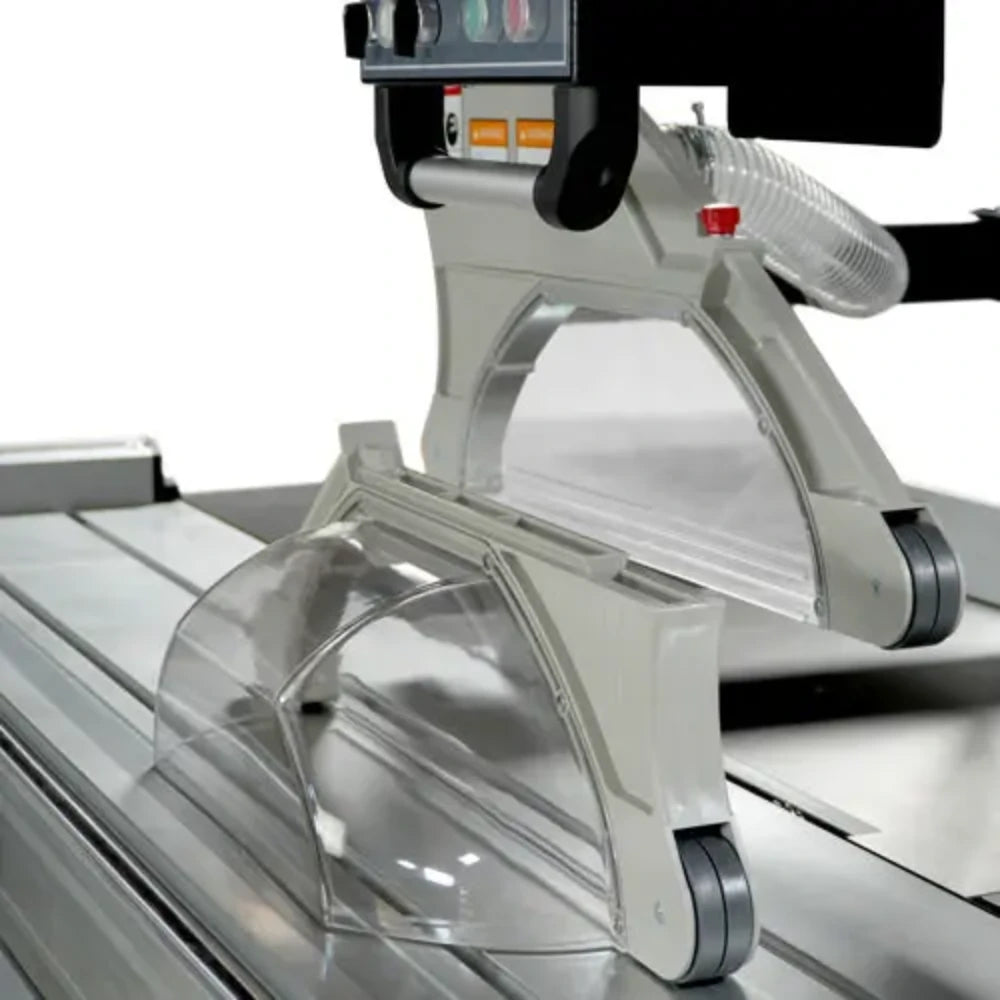

Dual blade protection system
-
Efficient, integrated dust collection
-
Industrial construction for long-term precision and stability
Technical Specifications
-
Model: BMD.3200.IR
Motor & Blade
-
Main Motor Power: 10 HP â 3 Phase â 220 V
-
Scoring Motor Power: 1 HP (0.75 kW)
-
Main Blade Speed: 3000 / 4000 / 5000 RPM
-
Maximum Blade Diameter: 16â | 400 mm
-
Main Blade Arbor: 1â | 30 mm
-
Max Cutting Height at 90°: 5â | 130 mm
-
Max Cutting Height at 45°: 3.5â | 90 mm
Scoring Unit
-
Scoring Blade Diameter: 4 3/4â | 120 mm
-
Scoring Blade Bore: 3/4â | 20 mm
-
Scoring Blade Speed: 8000 RPM
Cutting Capacity
-
Maximum Cut Capacity: 51â | 1300 mm
-
Main Blade Tilt Adjustment: Manual (0â45°)
-
Main Blade Height Adjustment: Manual
-
Scoring Saw Adjustment: Manual

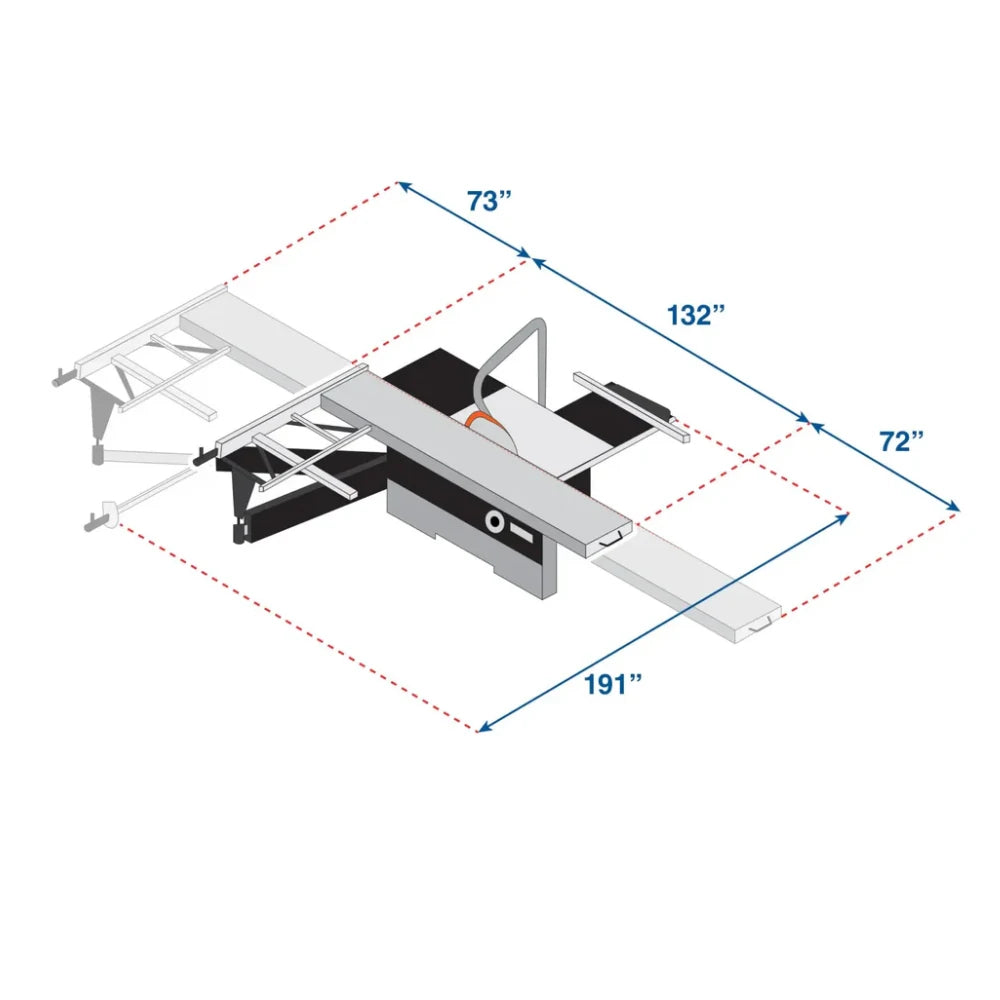

Tables & Dimensions
-

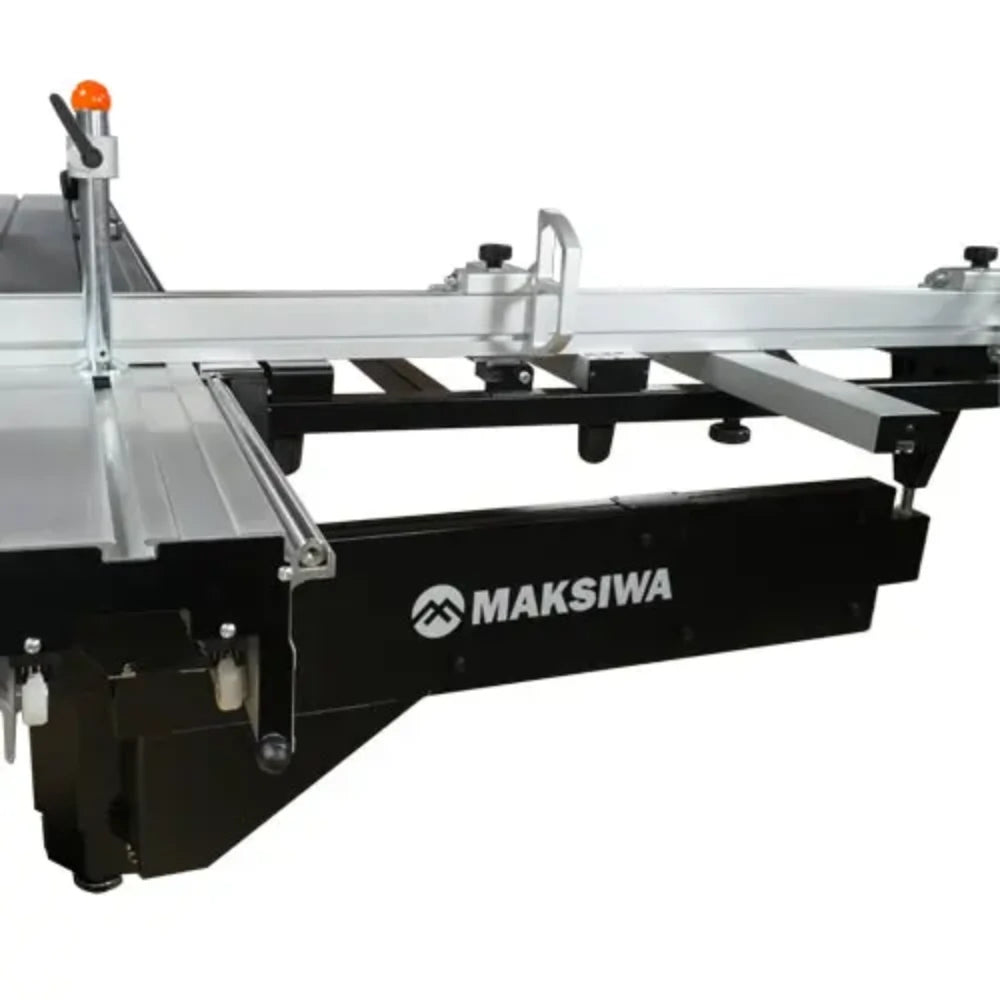

Sliding Table Dimension: 126â x 15â | 3200 x 378 mm
-
Cast Iron Table: 35â x 21â | 896 x 548 mm
-
Rear Extension Table: 37â x 35â | 952 x 896 mm
-
Front Extension Table: 32.5â x 12.5â | 830 x 320 mm
-
Total Table Size: 68â x 59â | 1726 x 1500 mm

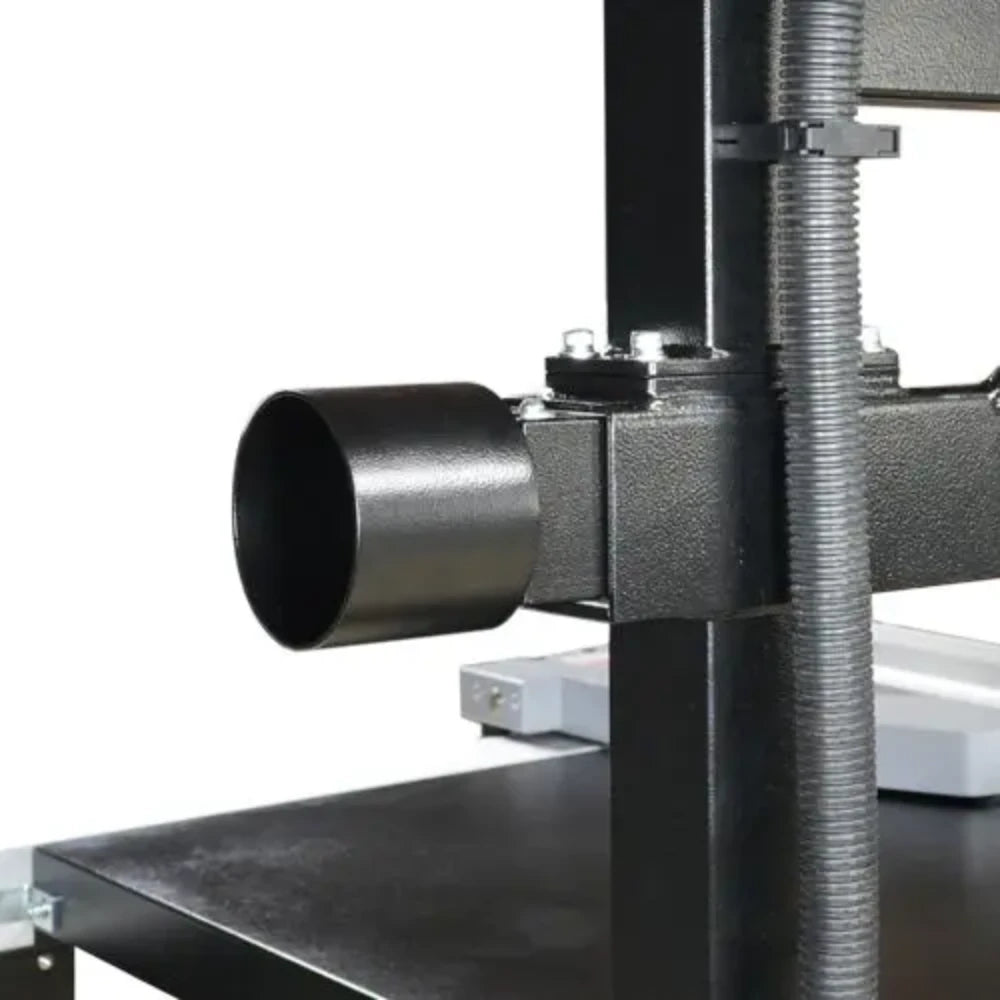

Dust Collection
-
Overhead Guard Port: 4â | 100 mm
-
Main Dust Port: 4 3/4â | 120 mm
Machine Size & Weight
-
Machine Size (L x W x H):
-
82â x 47â x 43 3/4â | 2100 x 1200 x 1110 mm
-
-
Net Weight: 1179 lbs | 535 kg
-
Gross Weight: 1400 lbs | 635 kg
